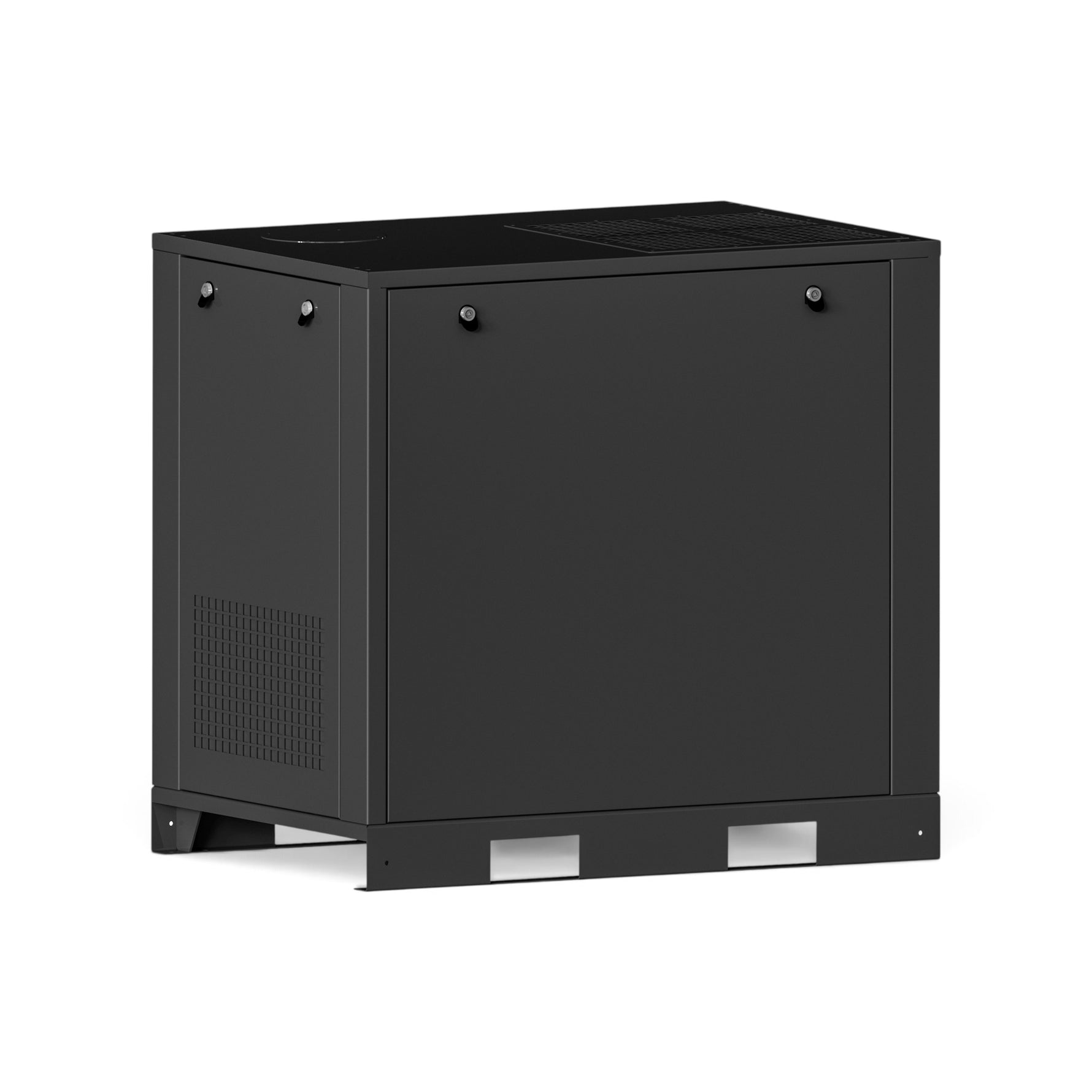

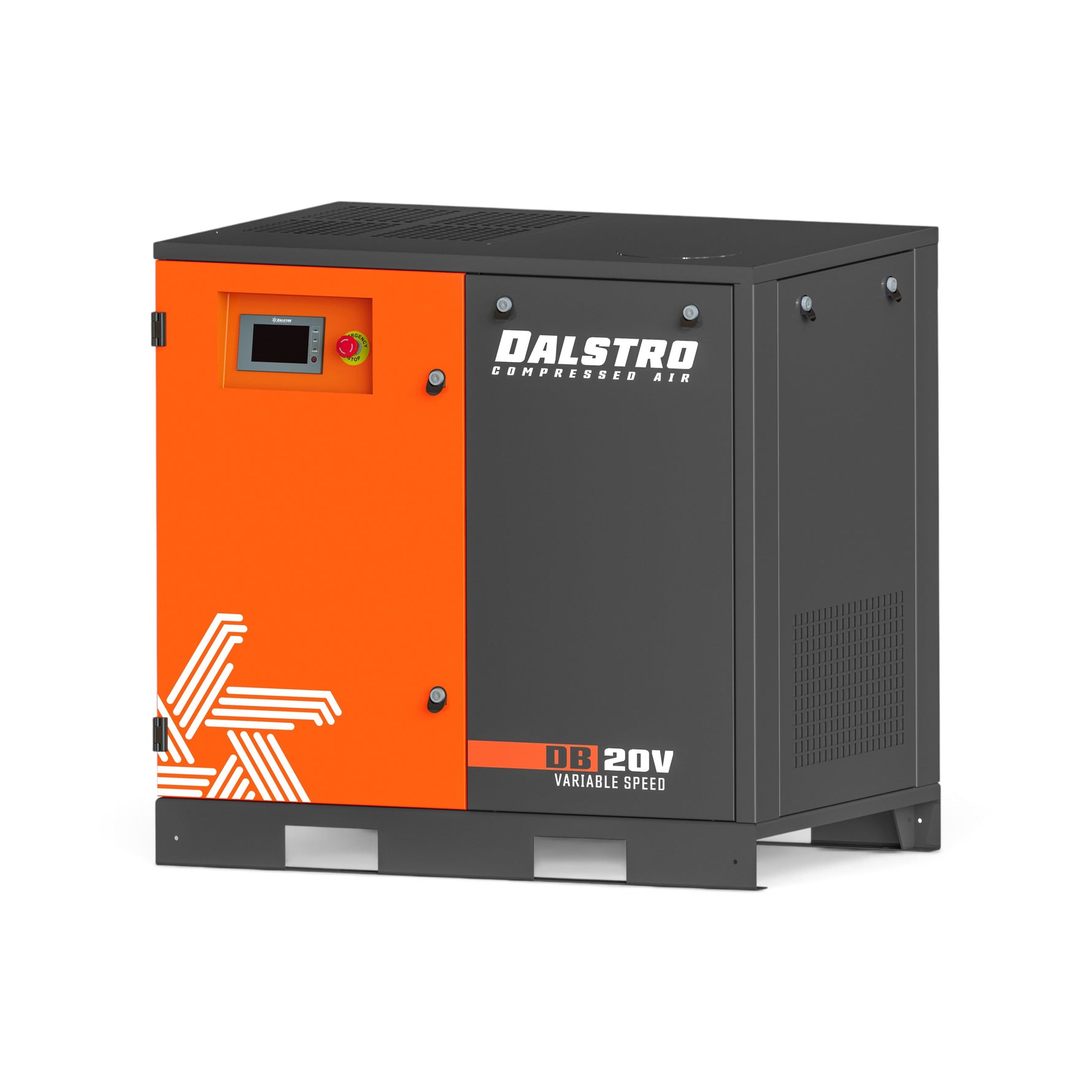

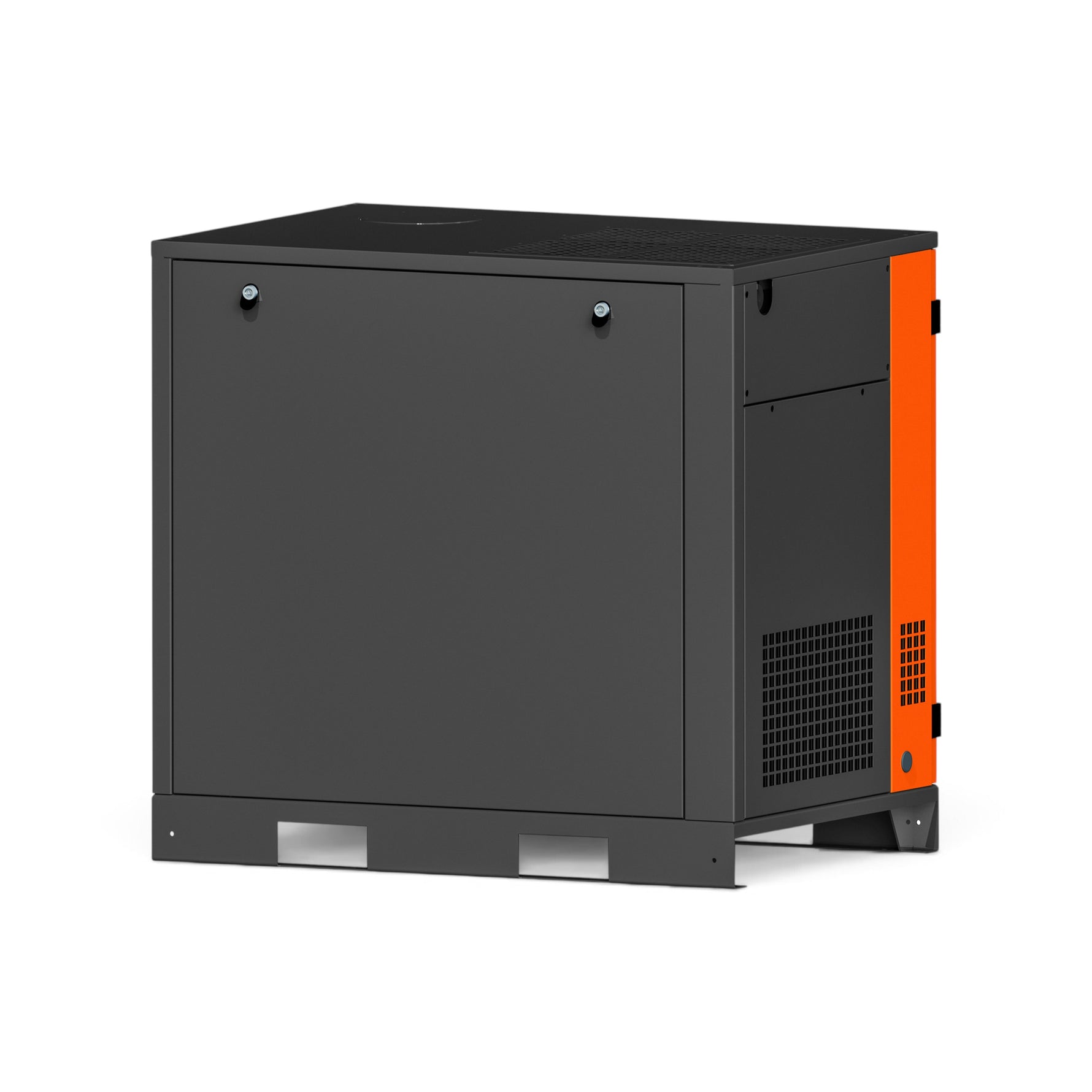

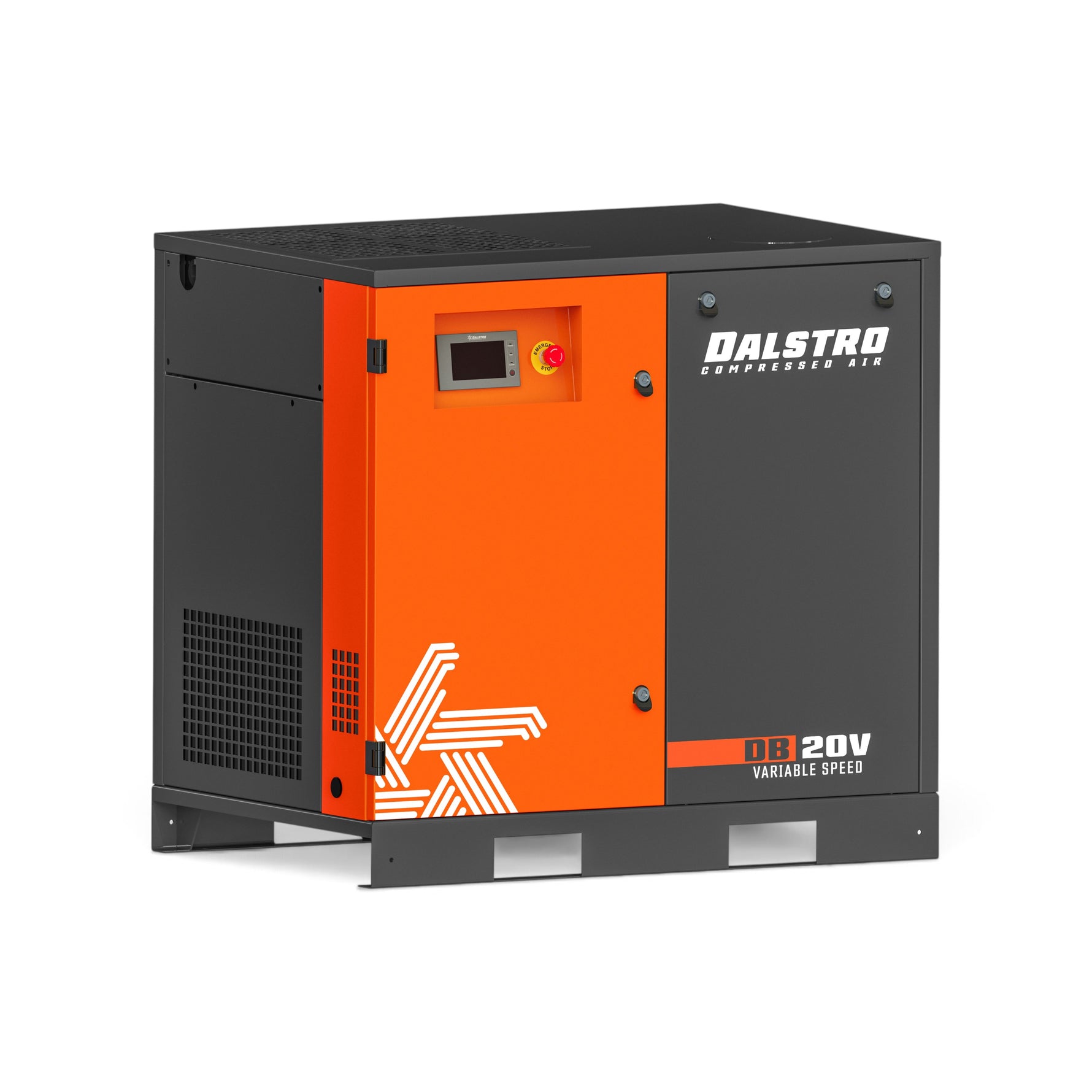

DB20V Screw Compressor – 15kW – Variable Speed

$7,579.00

The DB Series is engineered for exceptional value and reliability. Each DB unit is built around a durable air‑end for strong airflow and energy efficiency. Supported by advanced INVT variable‑speed drive control, maximum energy savings is part of the design. Together, these components create a world‑class compressor platform that outperforms in both efficiency and operational cost savings, giving you value and reliability.
Motor Power

15 kW / 20 HP / 3 phase
Air Delivery

7–10 Bar (100–145 psi) 84 CFM – 68.3 CFM
Motor and Drive Type

Variable Speed IE4 – Directly Coupled
Noise Level

65 ± 3 dB(A)
Safety Valve

AS1217 Compliant
Pressure Vessel Certification

AS1210 Compliant
Dimensions (mm)

1160 × 780 × 1100 (300kg)

Features

Description

Inverter (VSD)

Air End

Variable Speed

Silent Operation

Energy Efficient

Direct Drive

The DB‑Series is a compact, efficient rotary screw compressor range designed for workshops and small‑to‑medium commercial and industrial sites, delivering reliable air with low noise, low vibration and reduced energy use. Built with a high‑efficiency screw air-end, IE4 motor options and an INVT variable‑speed drive, the DB‑Series provides stable airflow while cutting power costs. A modern touchscreen controller allows easy operation, and spin‑on filtration makes servicing quick and clean. Heavy sound‑proofing and balanced internal components ensure quiet performance, making the DB‑Series an ideal choice for automotive, fabrication, CNC and general workshop environments needing dependable compressed air in a smaller footprint.

The INVT Inverter is a high‑performance compressor‑grade Inverter designed to deliver smooth, efficient and reliable motor control in demanding industrial environments. Used across our DA Series compressors, it provides fast response, stable torque and precise variable‑speed operation, ensuring lower energy consumption and consistent air delivery under all load conditions. Its advanced vector control supports both induction and permanent‑magnet motors, while built‑in protections, robust hardware and intelligent compressor‑specific logic make it ideal for continuous‑duty applications. With a compact design, easy wiring and strong reliability, this Inverter gives our compressors quieter operation, reduced power bills (reducing energy consumption by up to 35% compared to fixed-speed units) and long‑term durability — making it one of the most trusted drive platforms in modern industrial air systems.

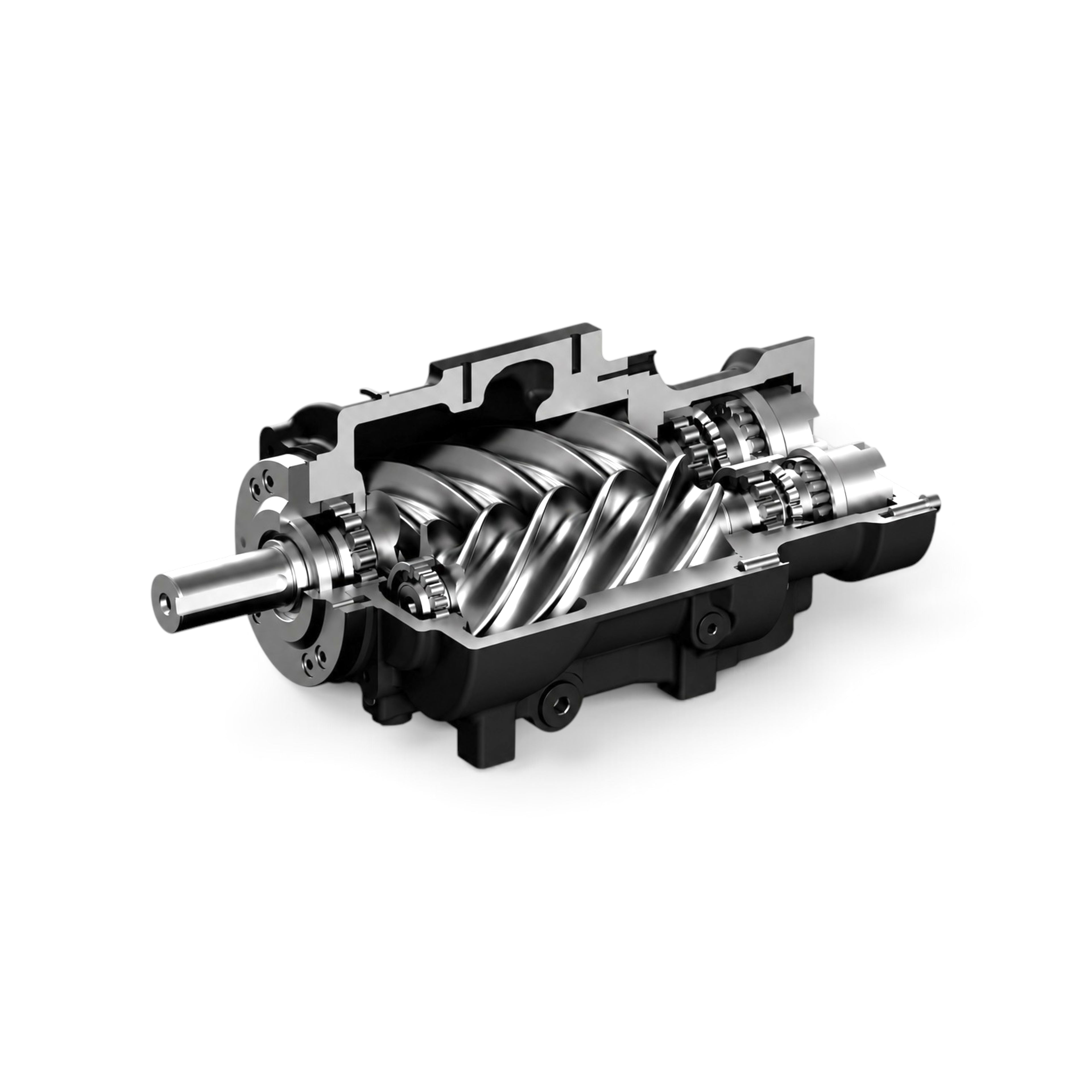

BSC air ends are built with patented rotors, SKF bearings, and European-made Teflon oil seals. Together, these components deliver outstanding efficiency, extended running life, and low noise and vibration — the foundation of a compressor that performs reliably day after day.

Image for reference purposes only*
