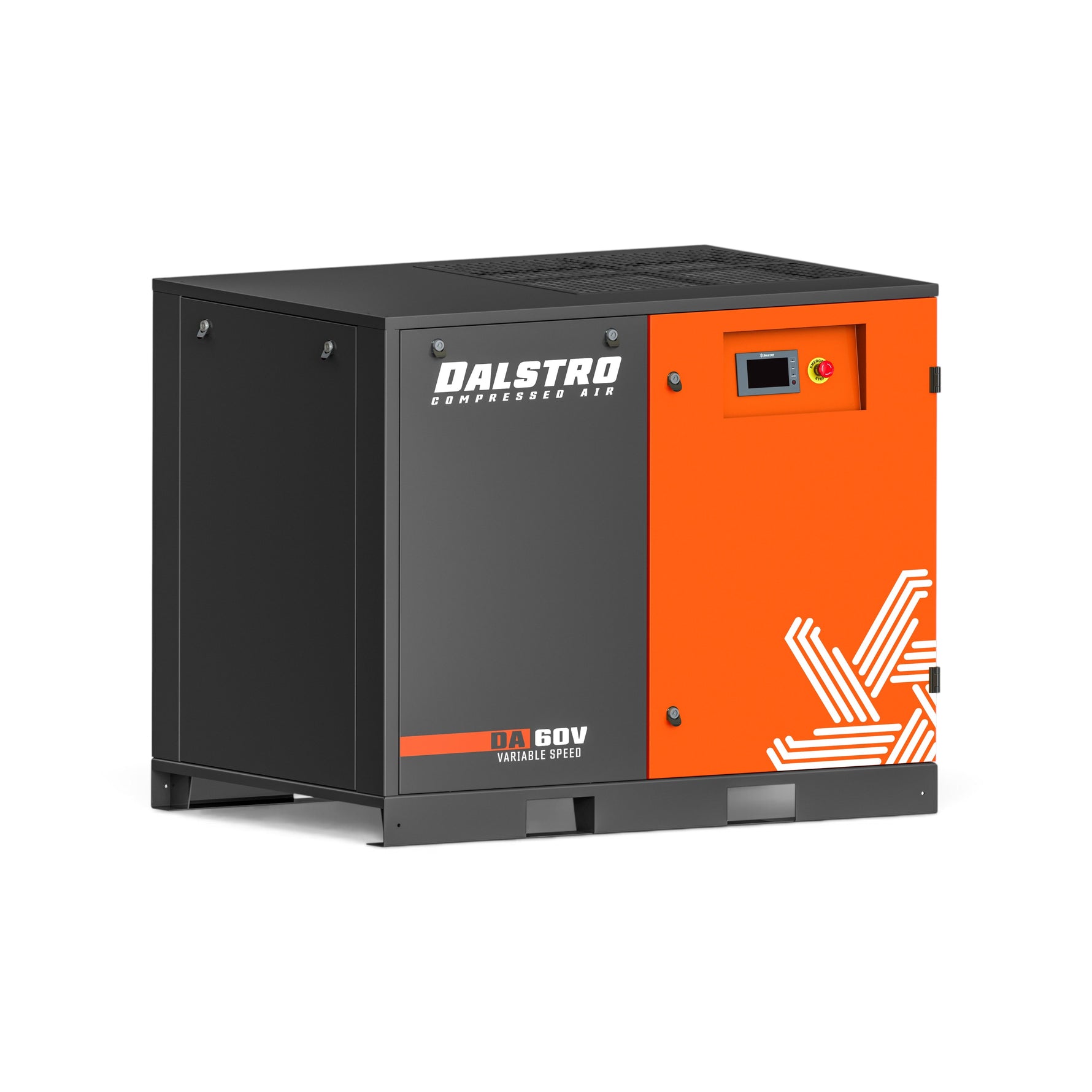

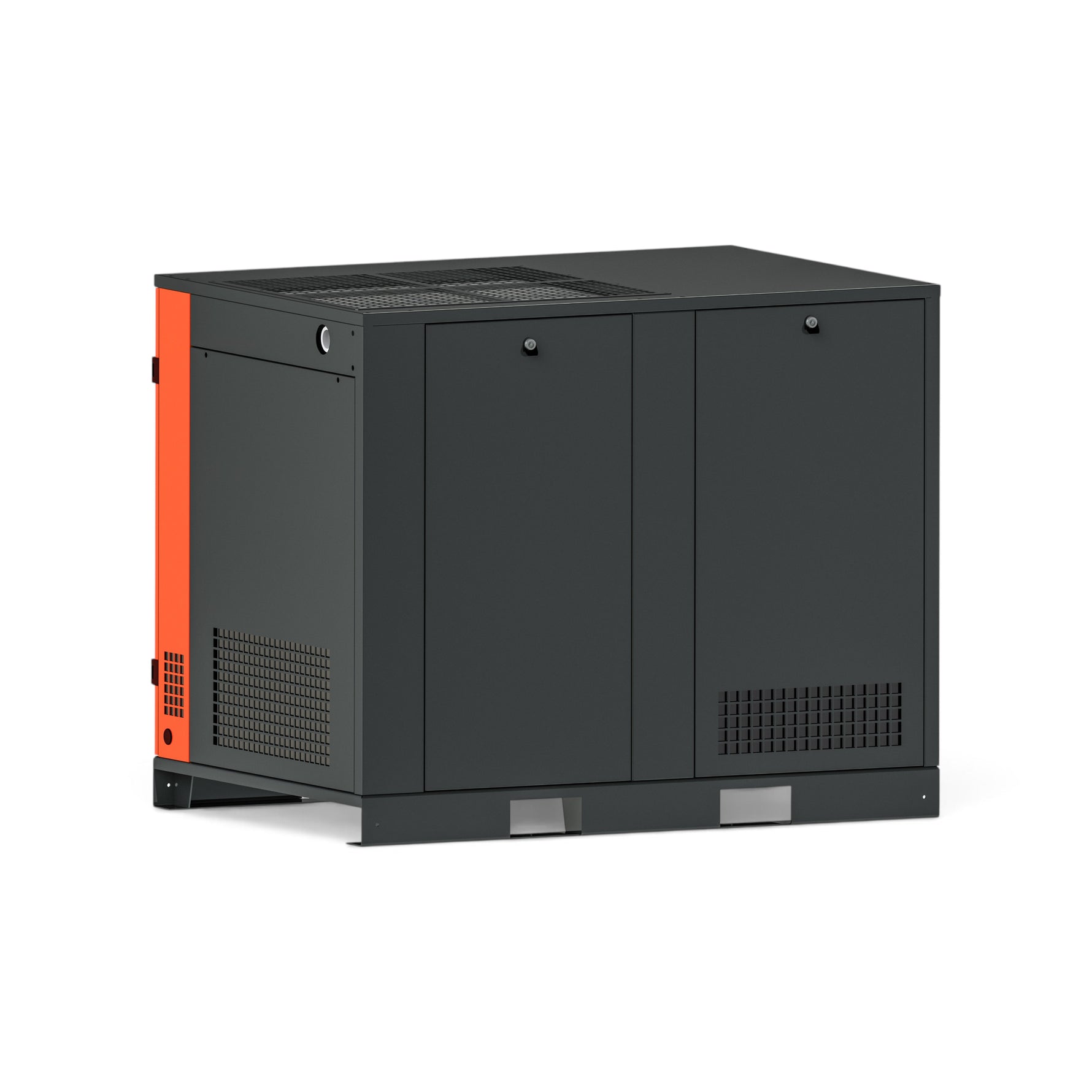

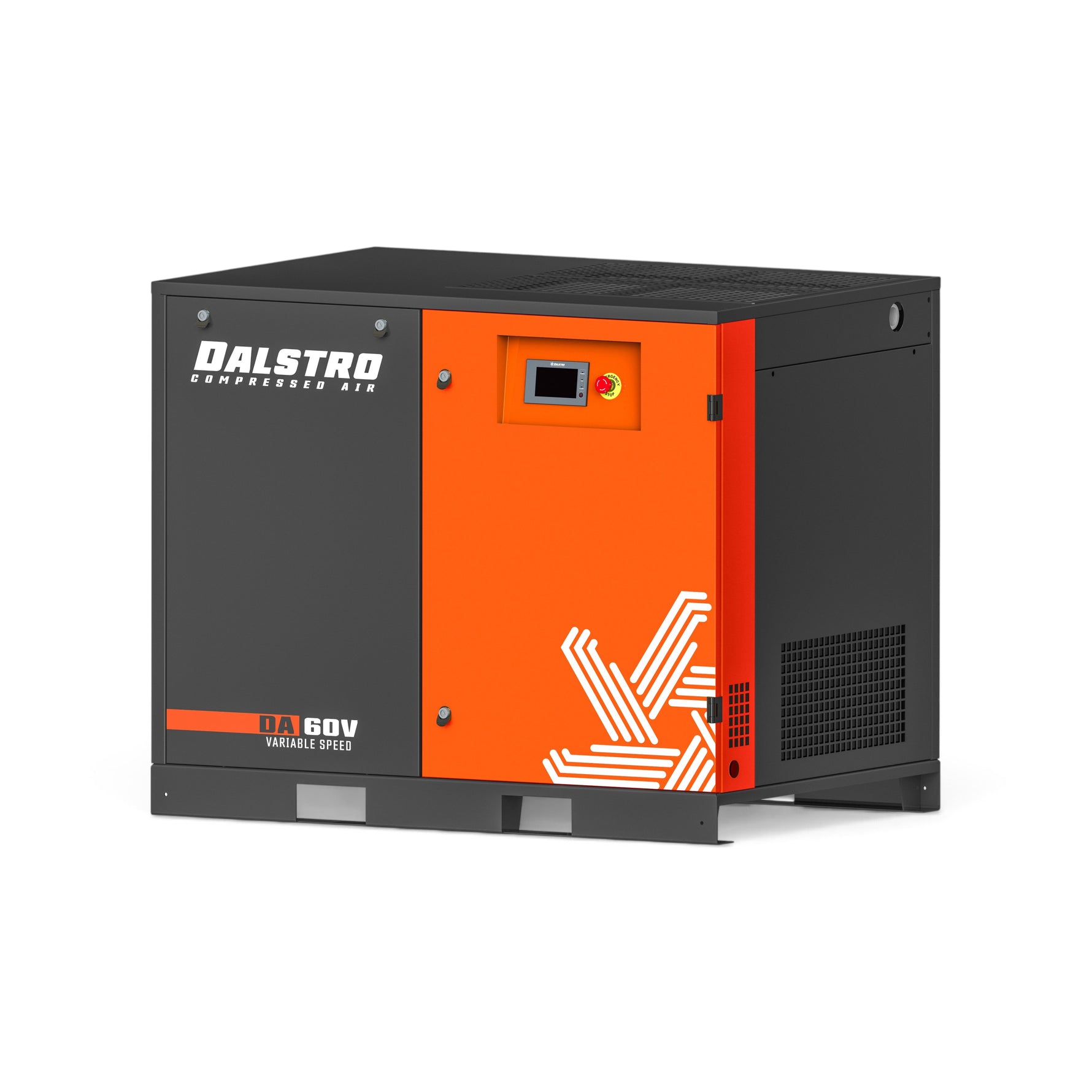

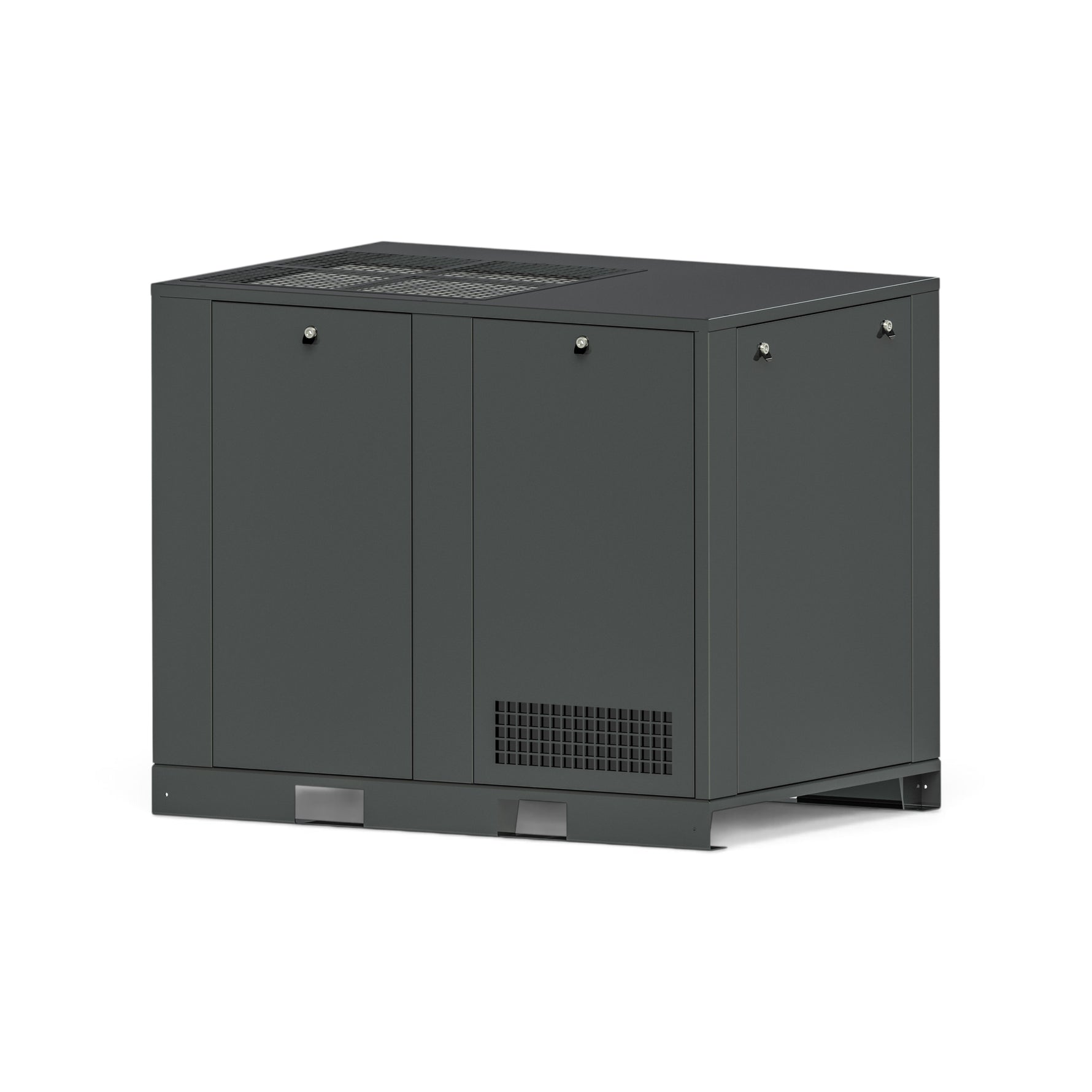

DA60V Screw Compressor – 45kW – Variable Speed

$21,307.00

The DA Series is engineered for exceptional efficiency, reliability, and long‑term durability. Each premium unit is built around a high‑performance air‑end for strong airflow and outstanding energy efficiency, supported by advanced INVT variable‑speed drive control, a Class 2 EMC system that reduces electromagnetic interference, and a Reactor that stabilises power and protects the electronics. Together, these components create a world‑class compressor platform that outperforms in both efficiency and operational reliability, giving you top‑tier performance and efficiency.
Motor Power

45 kW / 60 HP / 3 phase
Air Delivery

7–10 Bar (100–145 psi) 259 CFM – 217 CFM
Motor and Drive Type

Variable Speed IE4 – Directly Coupled
Noise Level

70 ± 3 dB(A)
Safety Valve Certification

AS1217 Compliant
Pressure Vessel Certification

AS1210 Compliant
Dimensions (mm)

1500 × 1025 × 1230 (650kg)

Features

Description

Inverter (VSD)

Air End

Variable Speed

EMC Filter + Reactor

Energy Efficient

Heavy-Duty Power Train

The DA‑Series is a heavy-duty premium industrial screw compressor range built for reliability, efficiency and quiet operation, featuring the high‑output Hanbell AB+ airend, IE4 energy‑saving motor and INVT variable‑speed drive for lower running costs. Every model includes a reactor for clean, stable power and Class 2 EMC protection to prevent electrical interference with CNCs, welders and sensitive equipment. A modern touchscreen controller with WiFi and app connectivity allows remote monitoring and off‑site operation, while spin‑on filtration makes servicing fast and clean. Heavy sound‑proofing, low‑vibration design and low‑noise cooling deliver a quiet, comfortable workshop experience, making the DA‑Series the ideal choice for businesses that want smart technology, dependable performance and long service life. The DA-Series is engineered and built to suit any commercial or industrial application where uncompromising quality, durability and efficiency is a necessity.

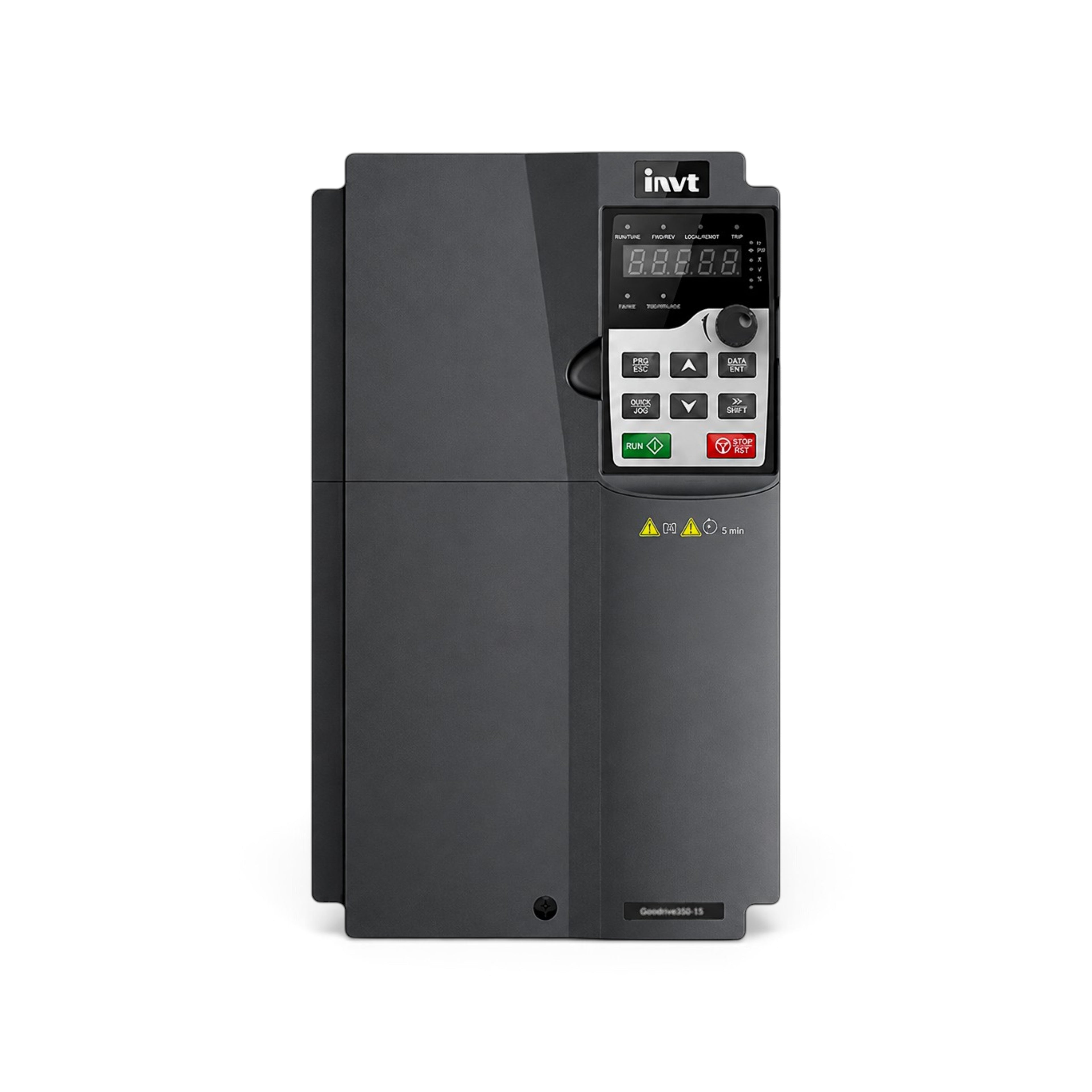

The INVT Inverter is a high‑performance compressor‑grade Inverter designed to deliver smooth, efficient and reliable motor control in demanding industrial environments. Used across our DA Series compressors, it provides fast response, stable torque and precise variable‑speed operation, ensuring lower energy consumption and consistent air delivery under all load conditions. Its advanced vector control supports both induction and permanent‑magnet motors, while built‑in protections, robust hardware and intelligent compressor‑specific logic make it ideal for continuous‑duty applications. With a compact design, easy wiring and strong reliability, this Inverter gives our compressors quieter operation, reduced power bills (reducing energy consumption by up to 35% compared to fixed-speed units) and long‑term durability — making it one of the most trusted drive platforms in modern industrial air systems.

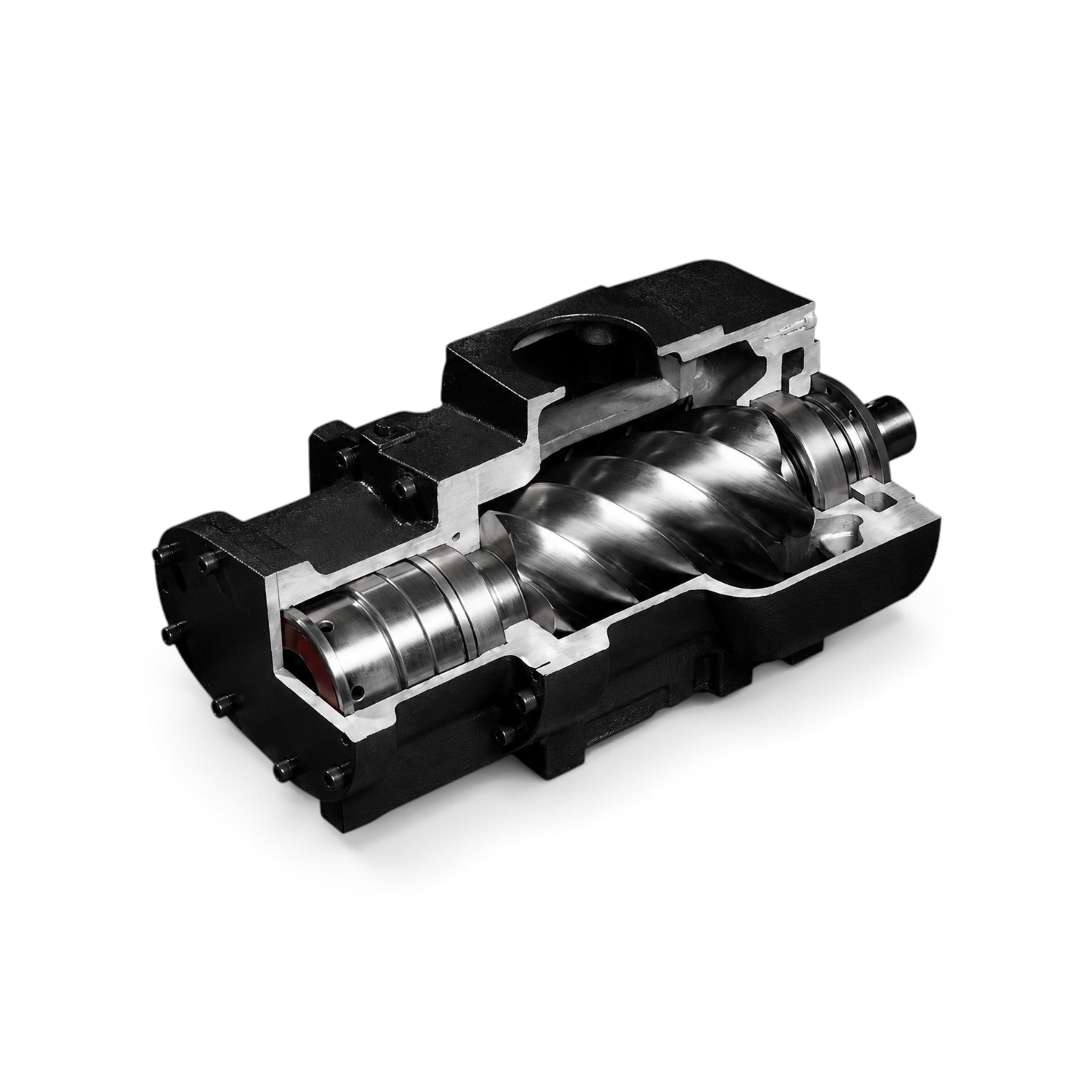

The Hanbell AB+ air end sets the benchmark for our premium range, built with a six-bearing design for exceptional stability and balance. Its patented asymmetric rotor profile is engineered to run at low tip speed, delivering outstanding volumetric efficiency with minimal vibration. This air end is the driving force behind our most demanding, high-performance machines.

Image for reference purposes only*
