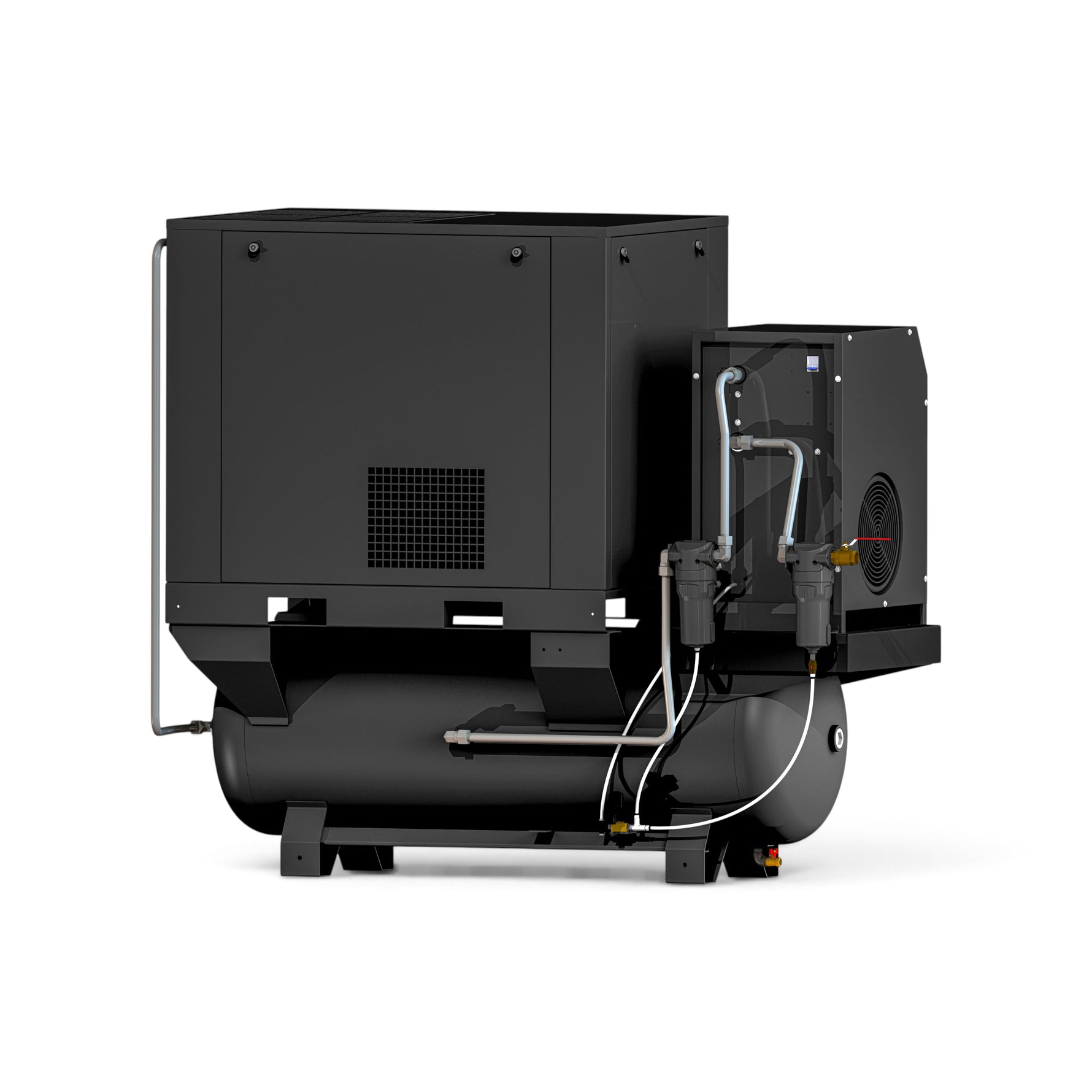

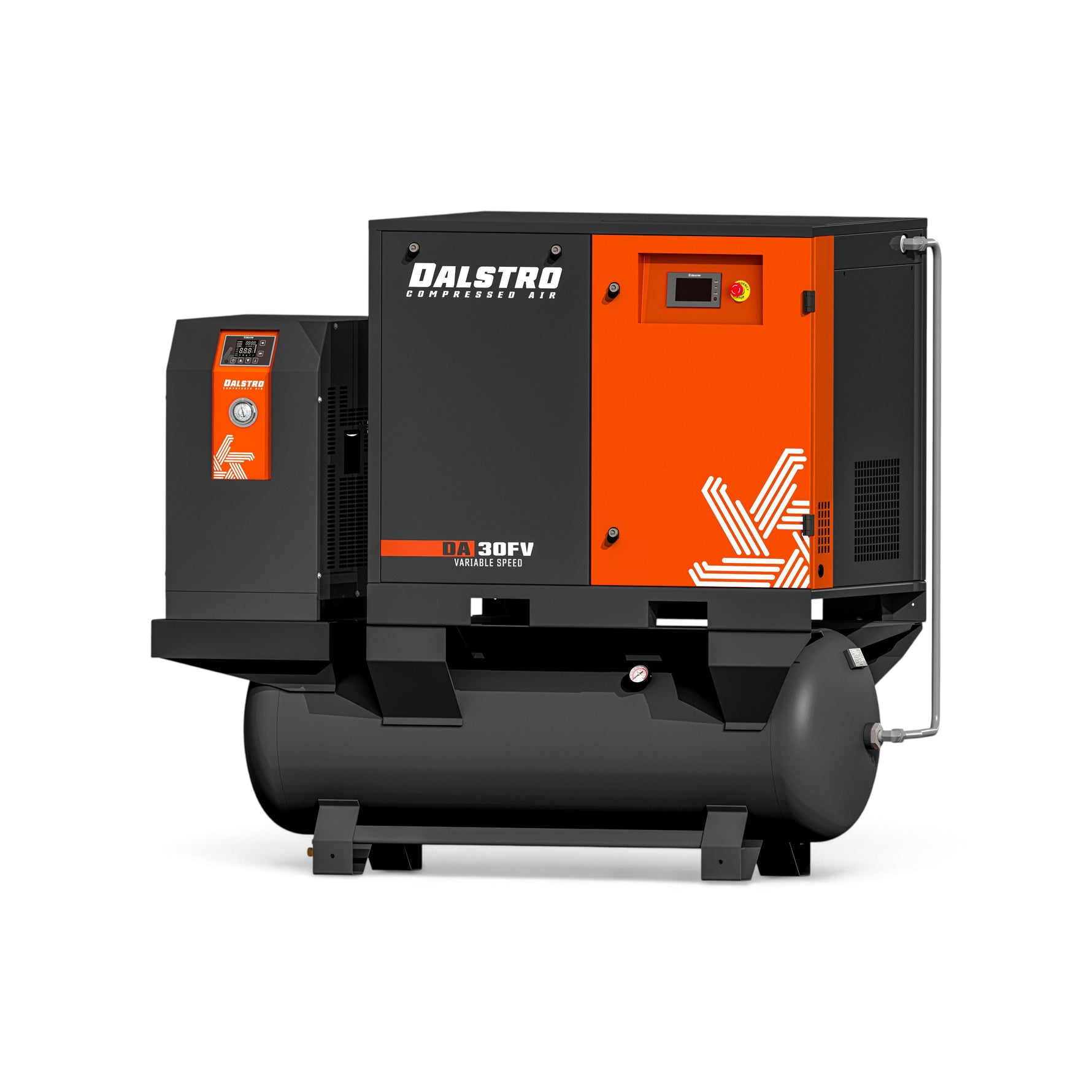

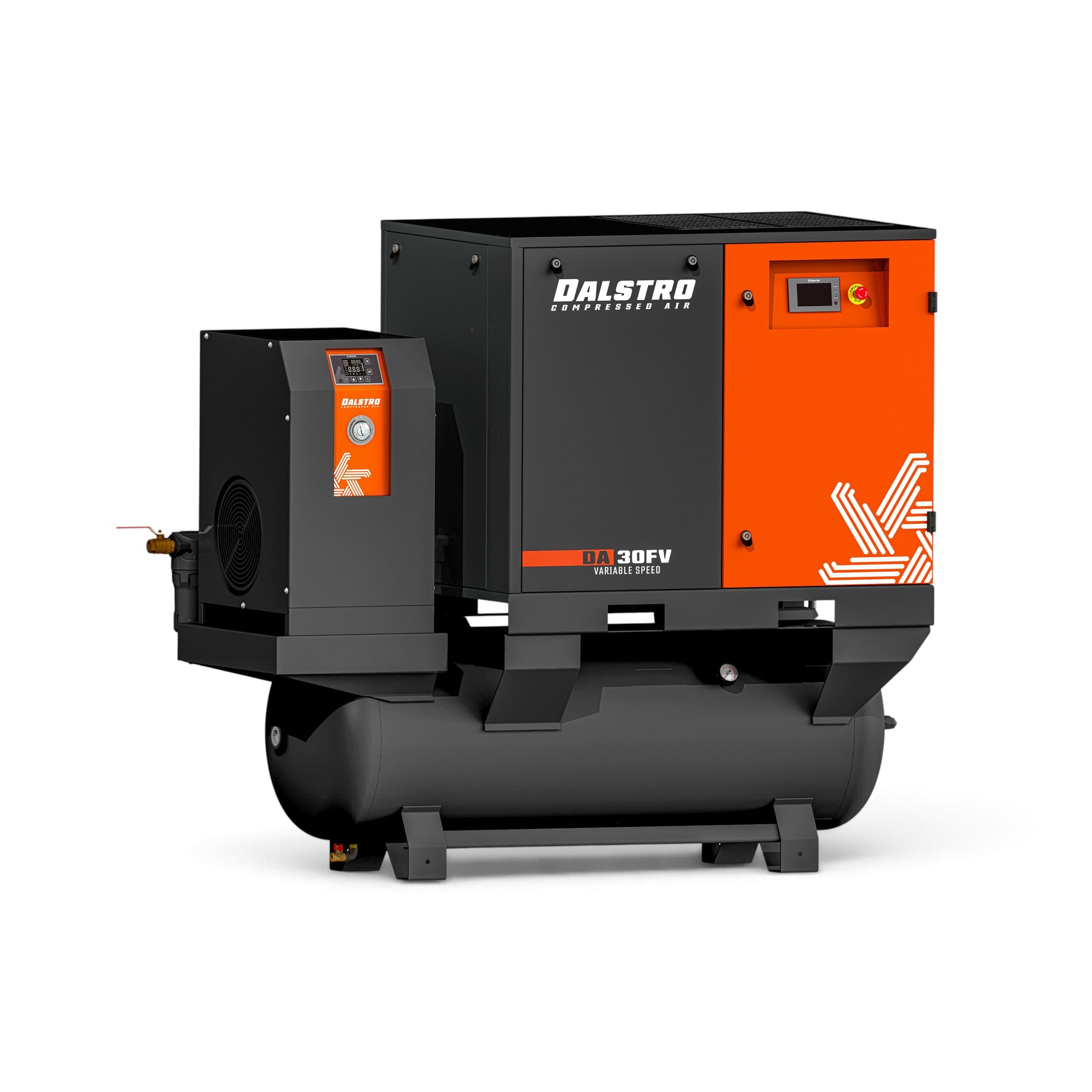

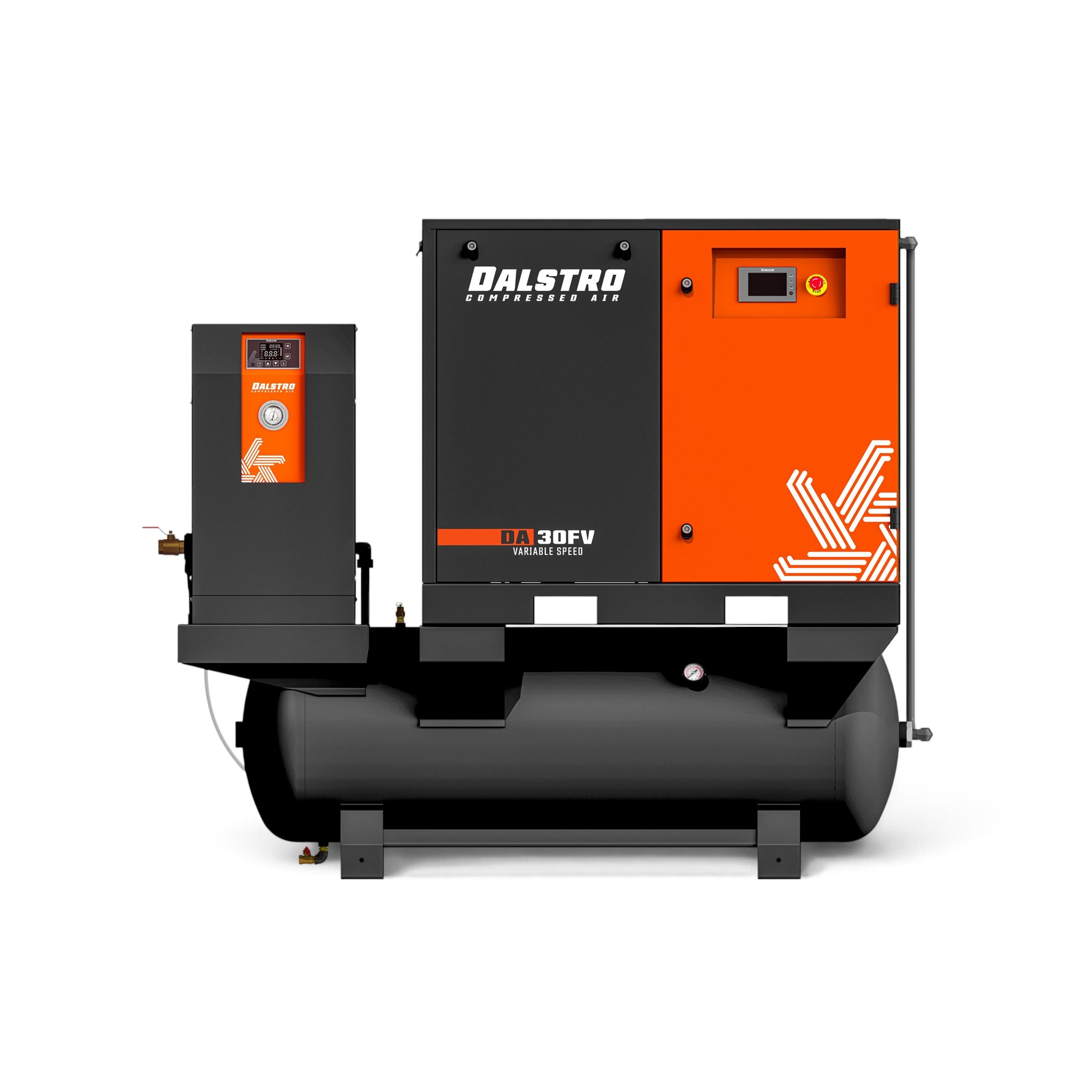

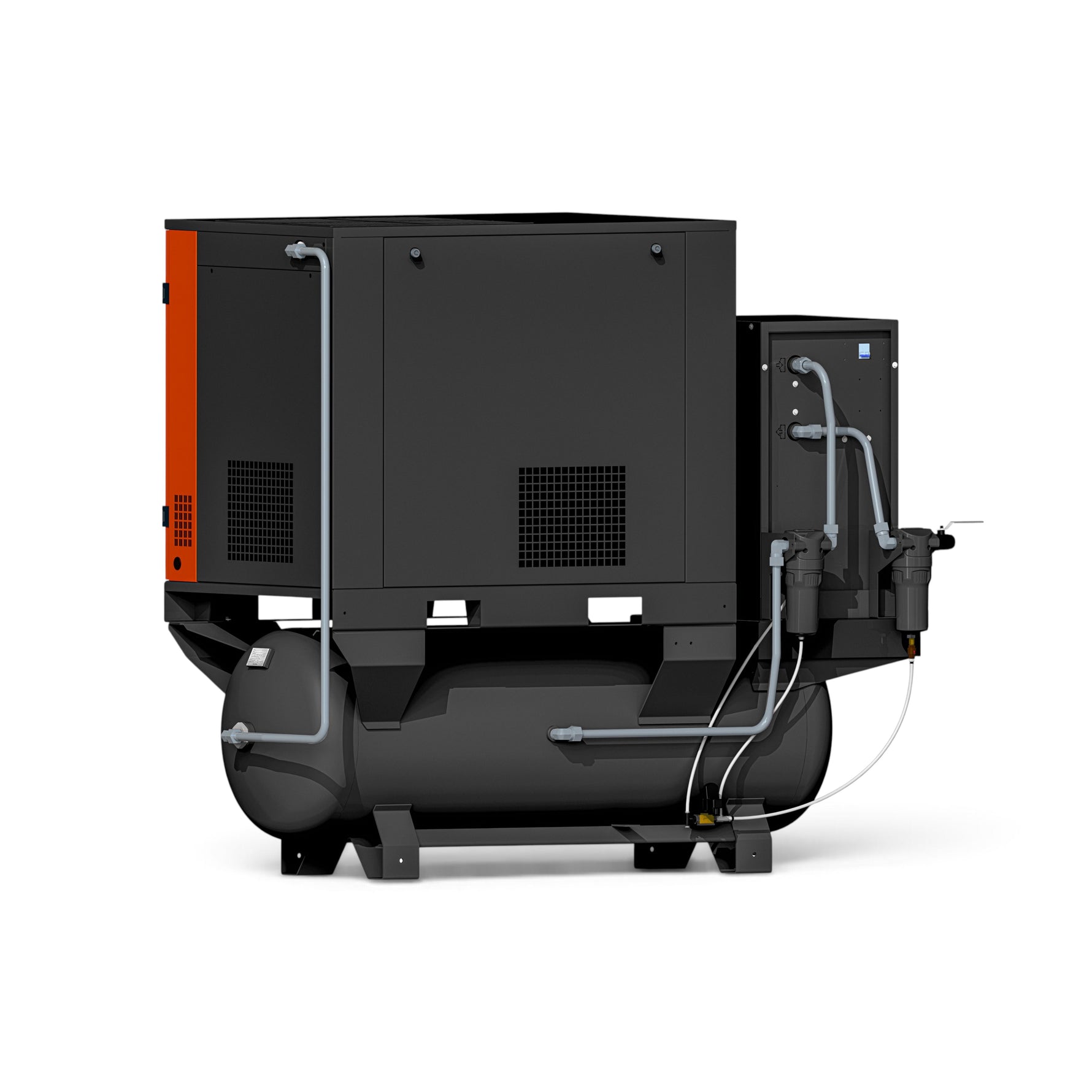

DA30FV Screw Compressor – 22kW – Variable Speed – Full Feature

$19,448.00

The DAFV Series All-In-One Compressed Air System is engineered for exceptional efficiency, reliability, and long‑term durability. Each premium unit is built around a high‑performance air‑end for strong airflow and outstanding energy efficiency, supported by advanced INVT variable‑speed drive control, a Class 2 EMC system that reduces electromagnetic interference, and a Reactor that stabilises power and protects the electronics. Together, with a variable speed air-drying and filtration system, these components create a world‑class compressor platform that outperforms in both efficiency and operational reliability, giving you top‑tier performance and efficiency.
Motor Power

22 kW / 30 HP / 3 phase
Air Delivery

7–10 Bar (100–145 psi) 136 CFM – 119 CFM
Motor and Drive Type

Variable Speed IE4 – Directly Coupled
Noise Level

68 ± 3 dB(A)
Air Treatment

Air Dryer with 2‑Stage Filtration and Auto‑Drain System
Air Tank Size

500L
Safety Valve Certification

AS1217 Compliant
Pressure Vessel Certification

AS1210 Compliant
Dimensions (mm)

2196 × 920 × 1870 (760kg)

Features

Description

Series Specs

Inverter (VSD)

Air End

Air Treatment

Variable Speed

EMC Filter + Reactor

Energy Efficient

Heavy Duty Power-Train

The DA‑FV Series is a heavy duty fully integrated, premium screw compressor package combining a high‑efficiency Hanbell AB+ airend, IE4 motor and INVT variable‑speed drive with a variable‑speed refrigerated dryer, 2‑stage filtration and a large air storage tank for clean, dry, stable air. Each unit includes a Reactor for smooth, protected power delivery and Class 2 EMC to prevent electrical interference with CNCs, welders and sensitive equipment. A smart touchscreen controller with WiFi and app connectivity allows remote monitoring and off‑site operation, while spin‑on filtration makes servicing fast and simple. Heavy sound‑proofing, low‑vibration engineering and quiet cooling deliver whisper‑low noise levels, making the DA‑FV Series the ideal all‑in‑one solution for light commercial to heavy industrial facilities needing reliable, efficient and clean compressed air.

Da Series Spec Sheet - PDF Download

The INVT Inverter is a high‑performance compressor‑grade Inverter designed to deliver smooth, efficient and reliable motor control in demanding industrial environments. Used across our DA Series compressors, it provides fast response, stable torque and precise variable‑speed operation, ensuring lower energy consumption and consistent air delivery under all load conditions. Its advanced vector control supports both induction and permanent‑magnet motors, while built‑in protections, robust hardware and intelligent compressor‑specific logic make it ideal for continuous‑duty applications. With a compact design, easy wiring and strong reliability, this Inverter gives our compressors quieter operation, reduced power bills (reducing energy consumption by up to 35% compared to fixed-speed units) and long‑term durability — making it one of the most trusted drive platforms in modern industrial air systems.

The Hanbell AB+ air end sets the benchmark for our premium range, built with a six-bearing design for exceptional stability and balance. Its patented asymmetric rotor profile is engineered to run at low tip speed, delivering outstanding volumetric efficiency with minimal vibration. This air end is the driving force behind our most demanding, high-performance machines.

Image for reference purposes only*

The DA Series Full Feature machines come complete with a high‑efficiency Variable Speed Refrigerated AirDryer, 2‑Stage Filtration (pre and post), a large air receiver tank and an Auto‑Drain System for clean, dry, stable air
